plata sacada carril ranurada de aluminio de la estructura de montaje del tejado 10-12um que anodiza los soportes solares 6005-T5
Persona de Contacto : Hanna
Número de teléfono : 86-18702773499
WhatsApp : +8618702773499
Cantidad de orden mínima : | 2000 PC | Precio : | USD50-300/pcs |
---|---|---|---|
Detalles de empaquetado : | Embalaje estándar de la exportación | Tiempo de entrega : | 15-25 días del trabajo |
Capacidad de la fuente : | 200000 PCS/Month |
Lugar de origen: | CHINA | Nombre de la marca: | TIANFON |
---|---|---|---|
Certificación: | SGS,ISO 9001,ISO 14001,OHSAS 18000 | Número de modelo: | Perfil de acero galvanizado |
Información detallada |
|||
NOMBRE: | Haz universal para el sistema de montaje solar | Color: | Natural o modificado para requisitos particulares |
---|---|---|---|
Tipo: | rejilla con./desc. | Duración: | Más de 25 años |
Garantía: | 10 años | Tratamiento superficial: | Galvanizado, anodizado |
Descripción de producto
Wind Seismic Resistance Customized Color Galvanized Universal Beam For PV Mounting Structures
As the main structure of the photovoltaic installation system, the galvnized steel are made by good quality Q235B and Q345B.The performance of load-bearing,wind resistance and seismic resistance has been given sufficient consideration,which will ensure the safety of the system.
The galvanized steel bracket has stable performance, mature manufacturing process and high bearing capacity. Therefore, it is mainly used in power plants with strength requirements, such as large ground power stations. The bracket made of this material is currently widely used in photovoltaic support.
Datas:
Name
|
Size(mm)
|
Thickness(mm)
|
Material
|
Surface treatment
|
Photo 1
|
Photo 2
|

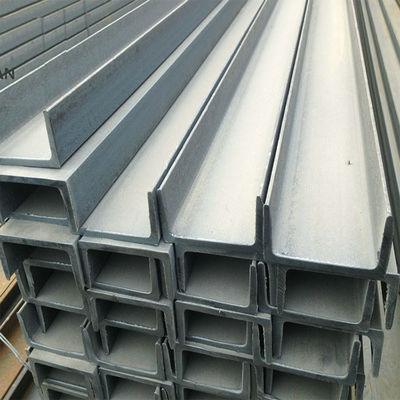

C type steel |
C40*40*10 |
1.5-2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|
|
C60*40*15 |
1.5-2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|||
C80*40*15 |
1.5-2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|||
C100*50*15 |
1.5-2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|||
C120*50*20 |
1.5-2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|||

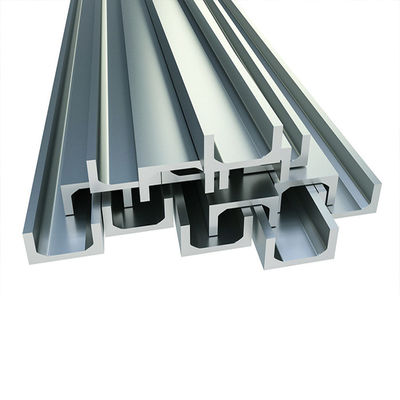

U type steel |
U41*21 |
1.5-2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|
|
U41*41 |
1.5-2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|||
U52*41 |
1.5-2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|||
U62*41 |
1.5-2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|||
U72*41 |
1.5-2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|||
Round tube |
φ60 |
2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|
|
φ60 |
3.0 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|||
φ76 |
4.0 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|||
φ89 |
4.0 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|||

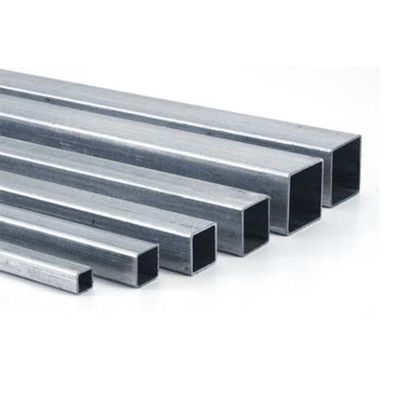

Square tube |
40*40 |
2.0-2.5 |
Q235B/Q345B |
Hot-Dip Galvanizing |
|
|
Rectangular tube
|
60*40 |
2.0-3.0 |
Q235B |
Hot-Dip Galvanizing |
|
|
80*40 |
2.0-3.0 |
Q235B |
Hot-Dip Galvanizing |
Products can be customized according to customer requirement.
Product feature:
1. Products can be customized according to customer requirement.
2. C purlin may be used in single spans and continuous spans in multi-bay buildings.
3. Manufactured from high tensile galvanized steel.
4. All components are highly pre-assembled, ensure the mounting system fast installation and saving labor cost.
5. High quality & reasonable Price, no need welding and punching, can use repeatedly, wide usage range, flexible for installation.
Packaging & Shipping:
► Place of loading: Basic Seaport, China
► Package: strong and long distance transportation package
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
► Payment Terms: L/C,D/A,D/P,T/T
